Brand
VERATRON
VERATRON Marine products cover the full spectrum of combination gauges, and have been manufacturing world-class marine instruments for powerboats, sailboats and yachts, uniting precision and design variance.

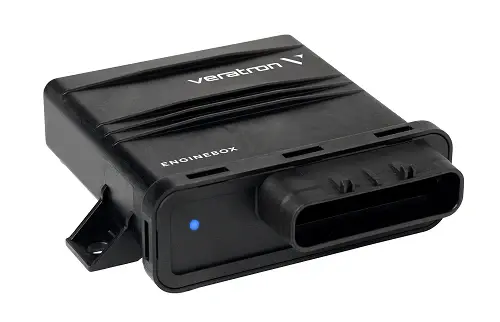

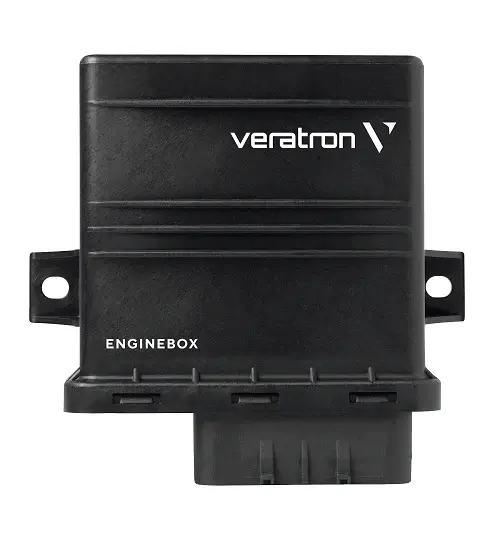

VERATRON EngineBox for Dual Engine
- Function: Rudder, Battery, Engine revolution, Exhaust gas temperature, Speed, Trim, Waste water level, Sea temperature, Fresh water level, Fuel level, Oil temperature, Coolant temperature, Air pressure, Engine hours, Boost pressure, Transmission oil pressure, Engine oil pressure, Air temperature
- Nominal Voltage: 24V, 12V
- IP Class: IPX9k-f
- Connectivity: NMEA 2000, SAE J1939
Highlights
- 2x J1939
- 1x M12 5 pins NMEA 2000®
- 2x Input 0–4 kHz for RPM
- 8x Inputs 0 – 400 Ω
- 2x Inputs 4 – 20 mA
- 2x Input 0-5Volt
- Analog to NMEA 2000® gateway
- J1939 to NMEA 2000® gateway
- 2 model for single engine and dual engine configurations
- Compact design
- Status LED
Highlights
- 8 pole Tyco / Hirschmann MQS plug
- +/- 3.6° angle degree accuracy over the entire display range
- Operating voltage 8 – 32 V
- Integrated warning alarm
- Input signal: standard Ω values
- Optional make point switch can be connected
- Reverse polarity protection
- Anti-fog double lens
- Front side protection rating IP67
- 52 mm installation diameter
- 50 mm installation depth
