JABSCO ELECTRIC SERVICE KIT – 12V DC
The Jabsco electric toilet may be installed above or below the waterline. Flush pump is self-priming with a vertical lift up to 4 feet; discharge macerator pump can operate against a vertical head up to 4 feet. The 37010 series can be used to convert the Raritan PH or Compact, Wilcox-Crittenden “Head Mate”, Groco HC, Brydon No. 9127, 9128, or No. 59128 and virtually any other model marine toilet using the “standard” bowl configuration with a 3-3/4″ diameter bolt circle, 4 hole pattern in the base.

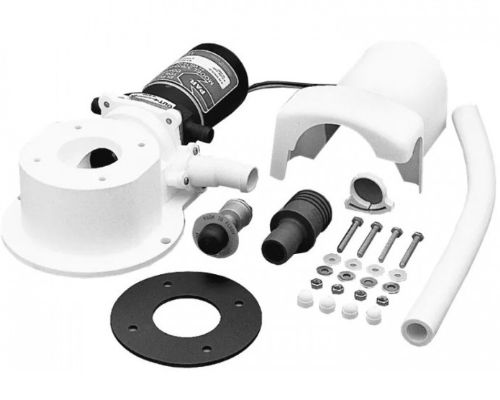

The 37010 series includes the complete motorized base assembly, bowl gasket, four bolts and washers for bowl, two 5/8″ to 3/4″ pump port adaptors, 3/4″ white hose, 1″ to 1-1/2″ discharge port adaptor, and momentary control switch.
Port Size: 5/8″ or 3/4″ Inlet, 1″ Outlet Back Flow Check Valve in Discharge.
1″ x 1-1/2″ Hose Adaptor included to adapt to 1-1/2″ waste plumbing.
Pump / Motor: High Capacity Macerator and Bowl Scavenger Pump. Flexible Impeller Flush Pump. Permanent Magnet Type Motor, Fully Enclosed, with Stainless Steel Shaft. Complies with USCG 183.410 and ISO 8846 MARINE for Ignition Protection. CE Rated.
